DF35 Diving Flashlight
DF35 Dving camera photography flashlight
DF35 maximum 2350 lumens, maximum diving depth 70m, maximum range up to 117m.
Maximum 2350 lumens
Maximum diving depth 70m
Maximum beam range 117m
DF35 DIVING CAMERA PHOTOGRAPHY FLASHLIGHT
DF35 has a maximum 2350 lumens, a maximum diving depth of 7Om, and a maximum range of 117m
MAXIMUM：2350 LUMENS
MAXIMUM DIVING DEPTH：70 M
MAXIMUM RANGE：117 M
MEET ALL NEEDS OF DIVING
DF35 is a diving flashlight especially for scuba diving, cave diving, free diving and other underwatersports lighting.
SCUBA DIVING-CAVE DIVING-FREE DIVING
THREE KINDS OF LED LIGHT SOURCES MAKE INTEREST OFTHE SEA WORLD
DF35 adopts three different LED light sources and one-button neck shape design; The threelight sources are: UV light, red light, white light, exploring the sea world interest, discoveringthe mysteries of the ocean.
WHITE LICHT(MAX 2350LM)
RED LIGHT( WAVELENGTH 62ONM)
UV LIGHT( WAVELENGTH 395NM)
MAXIMUM DIVING DEPTH 7OM
DF35 has special diving protection system, the max depth of the 70M diving pressure allows youto use it safely in the underwater.

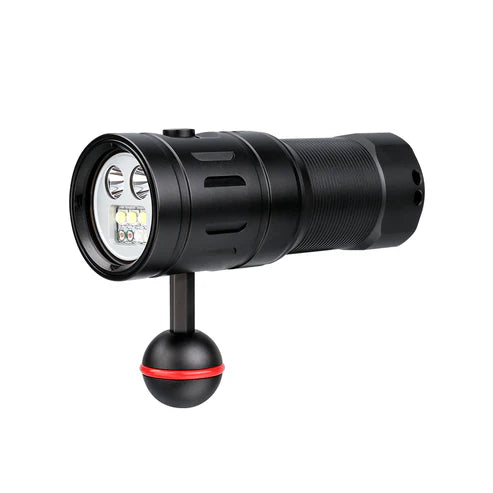

PRODUCT STRUCTURE

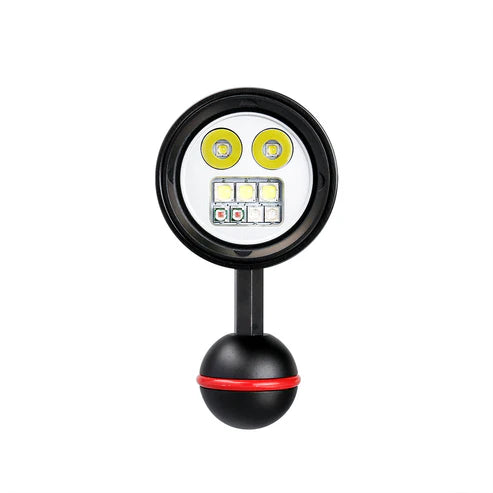

DF35 uses four different light beads and a one-touch button to turn on flood, spot, red and violet light.
- ON/OFF
- Battery indicator light
- Spotlight 2"xG2 3535 S4 lamp beads (550LM range 117m)
- FL00DL1GHT3"xM2-5050 T6 lamp beads (150 degree large floodlight)
- UV lamp 2'xPE UV LED (wavelength 395nm)
- Red light 2'xE.3535 Red LED (wavelength 620nm)

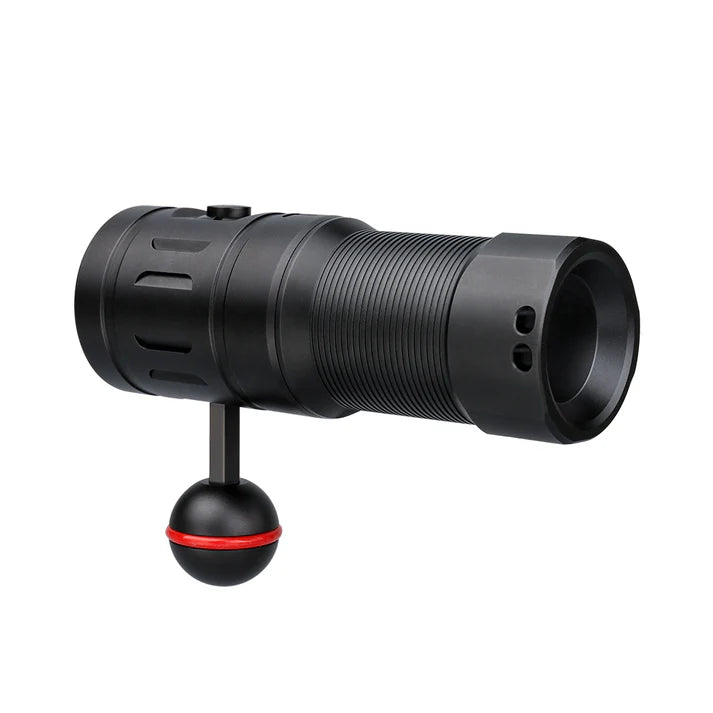

- BALL JOINT
WHITE SPOTLICHT
2* XG2-3535 lamp beads, white light (high mode) color temperature 5500K, independent spotdesign, 550 lumens, 117 meters range, can provide good search results under water.
WHITE FLOODLICHT
3* XM-5050 T6 lamp beads, white light ( fooding) color temperature 5500k, up to 150 degreesfooding can provide 2350 lumens of underwater lighting.
RED LICHT
2* XE-3535 red light LED, wavelength 620nm, provide pure and efficient red light, suitable forunderwater photography, creative photography fill light and red light isensitive fish fill light.
UV LIGHT
2* XPE UV LED, wavelength 395nm, pure UV light, suitable for underwater photography offish and corals with fluorescent substances, more suitable for creative photography fill light.
One-touch switch on the neck
On/off:
In unlock mode, long press the side switch for 0.5 seconds to turn on/off.
Mode switch:
When turning on, single-click the switch on the neck to switch modes: purple light mode-red light mode-high light mode-low light mode.
SOS mode:
When turning off, long press the switch for 1.5 seconds to enter SOS mode, and single-click the switch to return to working mode
Memory mode:
When the light is in any working mode, it will automatically memorize the current mode. After turning off, it will start working in the current memory mode.
Electronic click error prevention [LOCKJUNLOCK] OLock:
When the light is turned off, quickly double-click the switch to enter the lock mode. After locking, it flashes twice at low light.
Unlock: When the light is in lock mode, quickly double-click to unlock and enter working mode.
FOUR LEVEL BATTERY INDICATOR
Power indicator will light up when flashlight is ON, diferent color shows different remaining batterypower, the corresponding relationship as follows.
a:In the power-off state, touch the switch, the power indicator light will display for 2 seconds by default.
b: When the main light is working normally, the power indicator light will light up for 1 second every 5 seconds to indicate the current power.
BATTERY SELECTION
RECOMMENDED:Rechargeable Li-ion battery with protection board (Trustfre-32650x series, etc.)
DISCREETUSE:Rechargeabe lithium-ion battery (32650)
WARNING:1. 32650 batteries are industrial batteries, not safe and reliable civilian batteries. When the battery quality is poor or it is used improperly (short circuit, high temperature, etc.), it may burn or explode, endangering personal and property safety. Using high-quality lithium-ion batteries with protection boards can reduce the risk to a certain extent. It is recommended to use Trustfire series batteries. 2. It is forbidden to charge batteries or cells that are not recommended above.
STEELSTAND INCREDIBLE LOAD-BEARING CAPACITY
The improved ball joint bracket is made of steel material, it won't break, won't bend, durable.
1:REINFORCED SCREW PORT
2:STEEL STAND
PRODUCT PARAMETER
| FLOODLIGHT | HIGH MODE | RED LIGHT | UV LIGHT | SOS MODE | |
| BRIGHTNESS | 2350LM | 550LM | 61.74LM | 2.1LM | 253LM |
| RUN TIME | 1 hours 55 minutes | 3 hours 45 minutes | 5.5 hours | 8 hours | 28 hours |
| RANGE | 55M | 117M | 18M | \ | \ |
| LIGHT INTENSITY | 625CD | 3422CD | 2756CD | \ | \ |
ANTI-DROP HEIGHT:1 meter
WATERPROOF:70 meters underwater
FLASHLIGHT SIZE:120.3mm(tube length)*44mm(head diameter)
NET WEIGHT:195.8g(exclude battery)
ADDITIONAL FUNCTION:Intelligent temperature control, low voltage warning, anti-reverse connection design, power indication.
Note: The above parameters are only approximate values and are obtained by testing using a 32650 6000mAh rechargeable lithium-ion battery in a laboratory environment. The values may vary with changes in the usage environment and battery.
Product Features
Professional pressure-resistant and waterproof structure design, diving protection depth up to 70 meters
Professional pressure-resistant button design, even under 70 meters of water, it can still be operated.
Three-color fill light mode: floodlight, red light, and purple light.
Adopt international patented LED, life span up to 50,000 hours.
Use 1 3.6V/3.7V 6000mAh lithium-ion rechargeable battery.
120.3mm x 44mm (head diameter)
Net weight: 195.8g (excluding battery)
Constant current circuit, constant brightness.
Anti-reverse connection design to prevent reverse battery installation from damaging the circuit.
Anti-slip body design.
Made of aviation aluminum, the surface is hard anodized for anti-wear treatment.
Adopt double-sided anti-reflection coated tempered glass lens to effectively reduce light loss.
