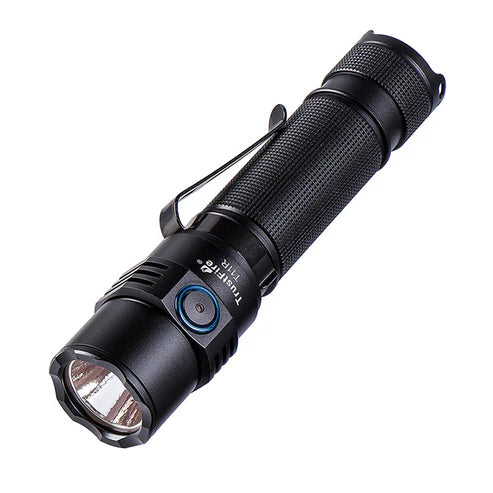

T11R Flashlight
T11R TACTICAL FLASHLIGHT
A high-performance rechargeable tactical flashlight with a maximum
1800 lumens and a range of 276 meters.
Type-ccharging+Batteryindicator+triple circuitprotection
USING INTERNATIONAL PATENTED LEDS, LIFE SPAN OF 50.000 HOURS
Use the latest generation of LUMINUS SST-40 LED with international patents, life span of 50,000 hours
TYPE-C CHARGING
Type-C charging technology, the maximumoutput current can reach 2A, faster and more convenience when charging
CHARGING INDICATOR
When the charging cable is energized to charge the device,the charging cable indicator will show a red light(charging)or a green light (full charged)
Type-cinterface
Red: charging
Green:Full
DISCHARGE POWER INDICATOR
There is a battery indicator on the neck of the flashlightWhen the flashlight is turned off, press the tail switch, thebattery indicator will light up, and it will automatically goout after 2 seconds. Different colors represent differentremaining battery power. The corresponding relationshipis shown in the following table:
Green: Fully charged(50%-100%)
Yellow: Normal use(20%-50%)
Red: Low battery(5%-20%)
Red flashing: Almost exhausted(0%-5%)

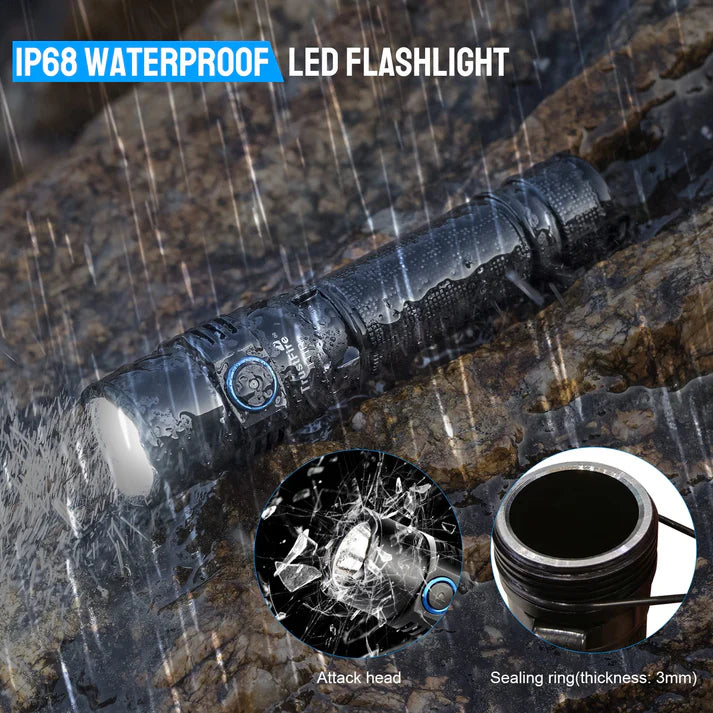

IP68 WATERPROOF
The highest level 6 for dust proof, and level 8 for waterproof, completely preventing dust from entering, and it can be used under water for 2 meters normally.

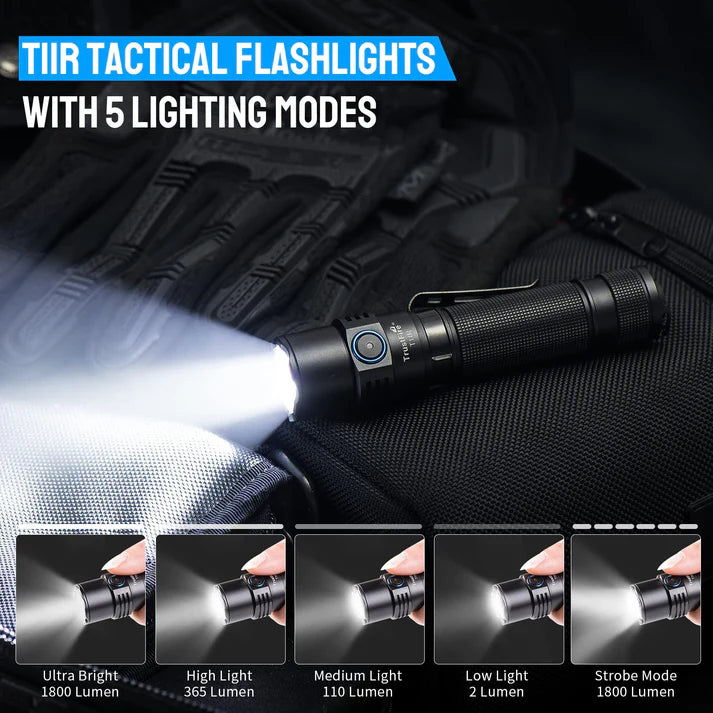

SWITCH OPERATION DESIGN
The T11r tactical flashlight has a neck button and a tail switch button respectively designed ,more convenience to your journey.

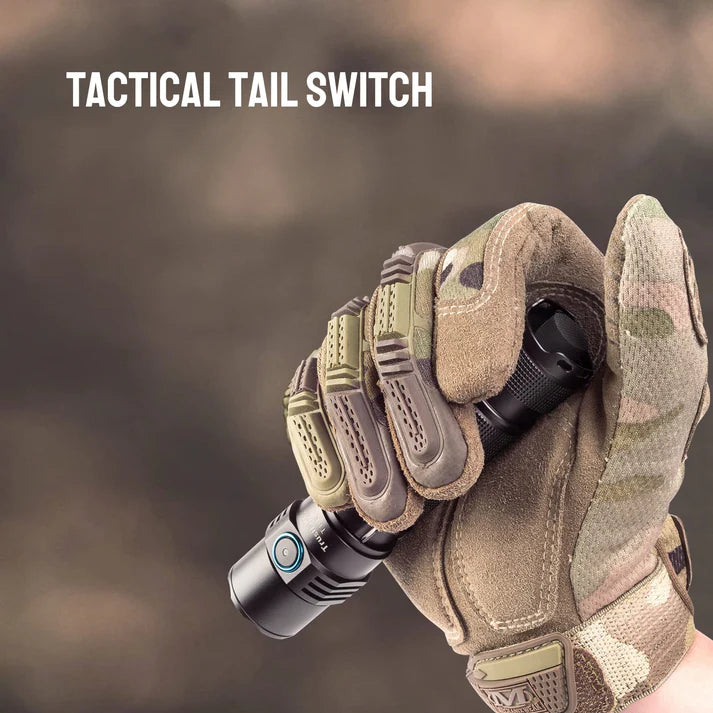

TAIL SWITCH
Power on and off: fully press the tail switch;Tactical switch: Touch the tail switch to temporarilylight up the flashlight, and then it will go out whenyou release it.
NECK SWITCH
Gear switching: click the neck switch (cycle switching)Memory gear: automatically memorize the current gearStrobe mode: long press the neck switch for 2 seconds

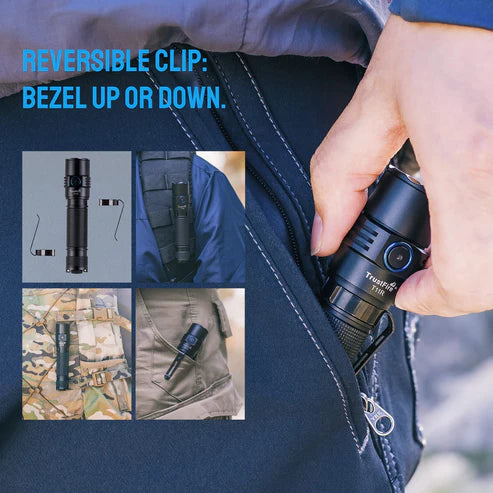

TWO-WAY HOLDING CLAMP
The bag clip can be removed and clamped in the groove of the neck or the groove of the taik,which can be hidden in the pocket, on the shoulder strap of the backpack, or behind the backpack.
AVIATION ALUMINUM MATERIAL
The cylinder body is made of aviation aluminum AL6061-T6, and the surface is subjected to military-standard three-level hard anodized anti-wear treatment.
BATTERY SELECTION
RECOMMENDATION:Rechargeable lithium-ion battery with protective board(Trustfire18650 lithium-ion batteryXseries, etc.18650-3.6V/3.7V)
AVAILABLE:Disposable batteries(2*CR123A-3.2V)
USE WITH CAUTION:Rechargeable lithium ion battery (without protection board
18650-3.6V/3.7V)
PROHIBITED TO USE:Rechargeable lithium ion battery (2*16340-3.6V/3.7V)
Warning: 18650 batteries are industrial batteries, not safe civilian batteries. Poor quality batteries or improper use (short circuit, high temperature, etc.) may burn, explode and endanger personal and property safety. Using high-quality lithium-ion batteries and protection boards can reduce the risks in some steps. Trustfire series batteries are recommended.
PRODUCT FEATURES
★Use the latest generation of LUMINUSSST-40 LED with international patent, lifespan is 50000 hours,
★UsB Type-C charging technology, withcharging indication function;
★ Tail tactical switch function;
★ Neck one-button shift function;
★ The built-in intelligent temperature controlsystem prevents the flashlight from overheatingduring using and improves the comfort feelingwhen using,
★Constant current circuit, constant brightnessgear memory,
★Low-voltage warning, when the remainingpower is too low, remind the user to replaceit in time;
★ Anti-reverse connection design preventsthe battery from being installed reversely andcausing harm to the circuit;
★Manufactured with aviation aluminummaterial AL6061-T6;
★ The surface is treated with military-standardthree-level hard anodized anti-wear treatment,
★ Size:123mm (tube length)x 27mm (headdiameter);
★Net weight: 69.7g (exclude battery)
PRODUCT PARAMETER
Note: The above parameters are only approximate values. The values are obtained by testing in the laboratoryenvironment of 18650 3000mAh rechargeable lithium-ion batteries. The data may change according to usingenvironment and battery changes.
